# Server Firewall

### **Stage 1: Temporary Access for Initial Deployment**

#### **Purpose:**

To log in to the server and execute initial installation commands.

#### **Action:**

* In your cloud provider's firewall settings (e.g., AWS Security Group), add an inbound rule to allow SSH (TCP port 22) traffic from **your current public IP address**.
* **Security Tip:** This rule is temporary. Do not open the SSH port to all IPs (`0.0.0.0/0`), as this poses a significant security risk.

### **Stage 2: Configure Core Node Communication Port (17610)**

#### **Purpose:**

To allow your node to interact with the DotSwap network and to allow you to access the management dashboard.

#### **Action:**

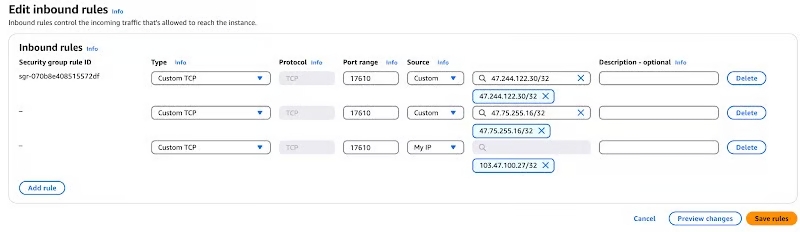

You need to add an inbound rule to allow TCP traffic to port `17610` from the following sources:

* **Source 1 (Protocol Communication):** `47.75.255.16/32` and `47.244.122.30/32`. These are the addresses for DotSwap's core relay network. Your node must be able to receive instructions from these addresses to function correctly.
* **Source 2 (Personal Management):**`Your current public IP address`.This IP will be allowed to access port 17610 on your server`http://<Your-Server-IP>:17610`from your personal network.

<figure><img src="https://images.swap.dotwallet.com/web_restrict/gitbook_api_img/image%20(6).png" alt=""><figcaption></figcaption></figure>

### **Stage 3: Security Hardening (After Successful Deployment)**

#### **Purpose:**

To remove unnecessary public entry points and significantly enhance server security.

#### **Action:**

After you have confirmed that your node is deployed and running stably, you **must perform the following critical step**:

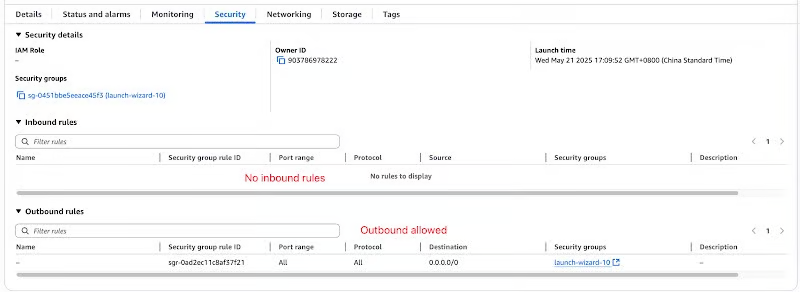

* **Remove SSH Access Rule:** Return to your firewall settings and **delete or disable** the rule allowing SSH (port 22) access that you created in Stage 1.

<figure><img src="https://images.swap.dotwallet.com/web_restrict/gitbook_api_img/image%20(2-1).png" alt=""><figcaption></figcaption></figure>

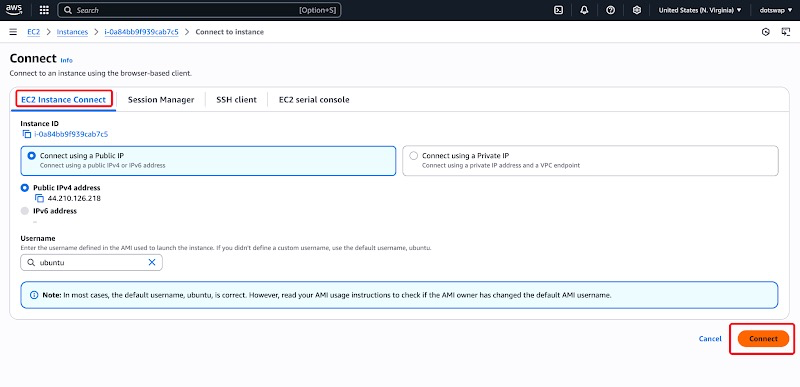

* **How to manage the server after closing SSH?** You will no longer connect via public SSH. Instead, you should **rely exclusively on the secure, in-browser management tools provided by your cloud provider** (e.g., AWS Session Manager, Linode Lish Console), which is the industry-recommended best practice.

<figure><img src="https://images.swap.dotwallet.com/web_restrict/gitbook_api_img/image%20(7).png" alt=""><figcaption></figcaption></figure>
